Magnetic field analysis in a magnetron sputtering device

Computational conditions

Parameters of magnets

• Residual magnetic flux density Br 1.0T
• Coercive force bHc 8500 Oe

Result

•

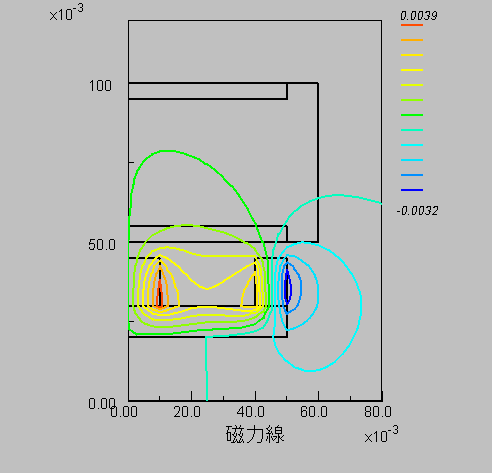

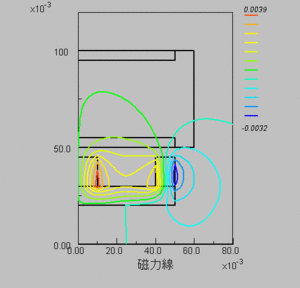

  Lines of magnetic force

•

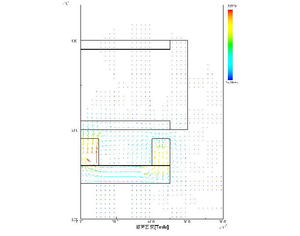

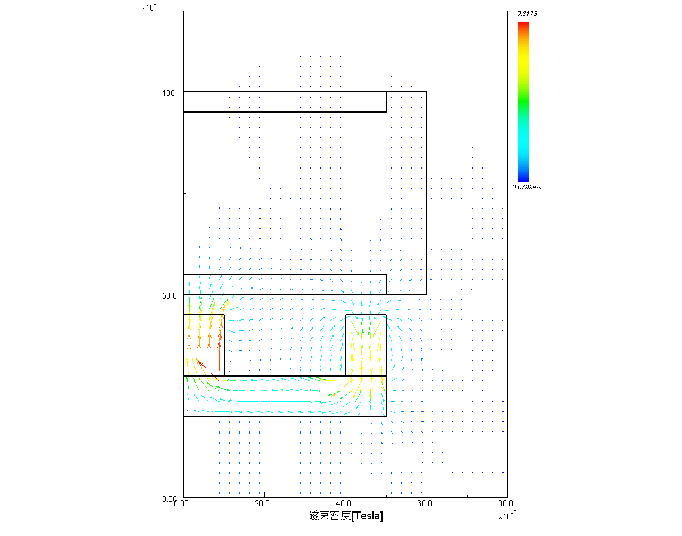

  Magnetic flux density

•

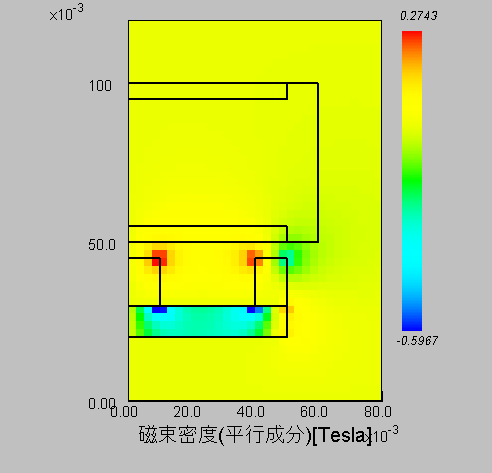

  Horizontal componet of magnetic flux density

•

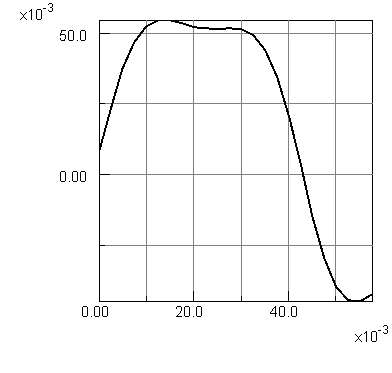

  Horizontal componet of magnetic flux density on target

•

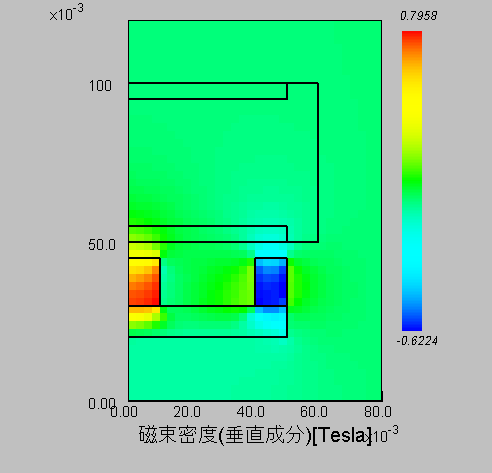

  Vertical componet of magnetic flux density

•

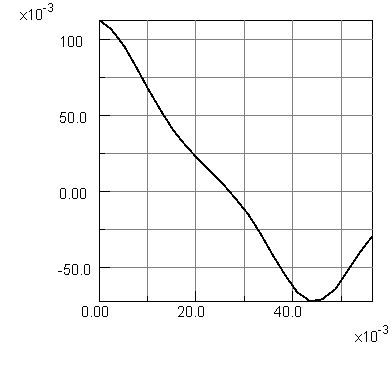

  Vertical componet of magnetic flux density on target
